edX.org

This guide shows the edX.org-specific steps for embedding Mark assignments. First, get your LTI Launch URL using the Embedding Mark - General Instructions.

---

Configure LTI in edX.org Studio

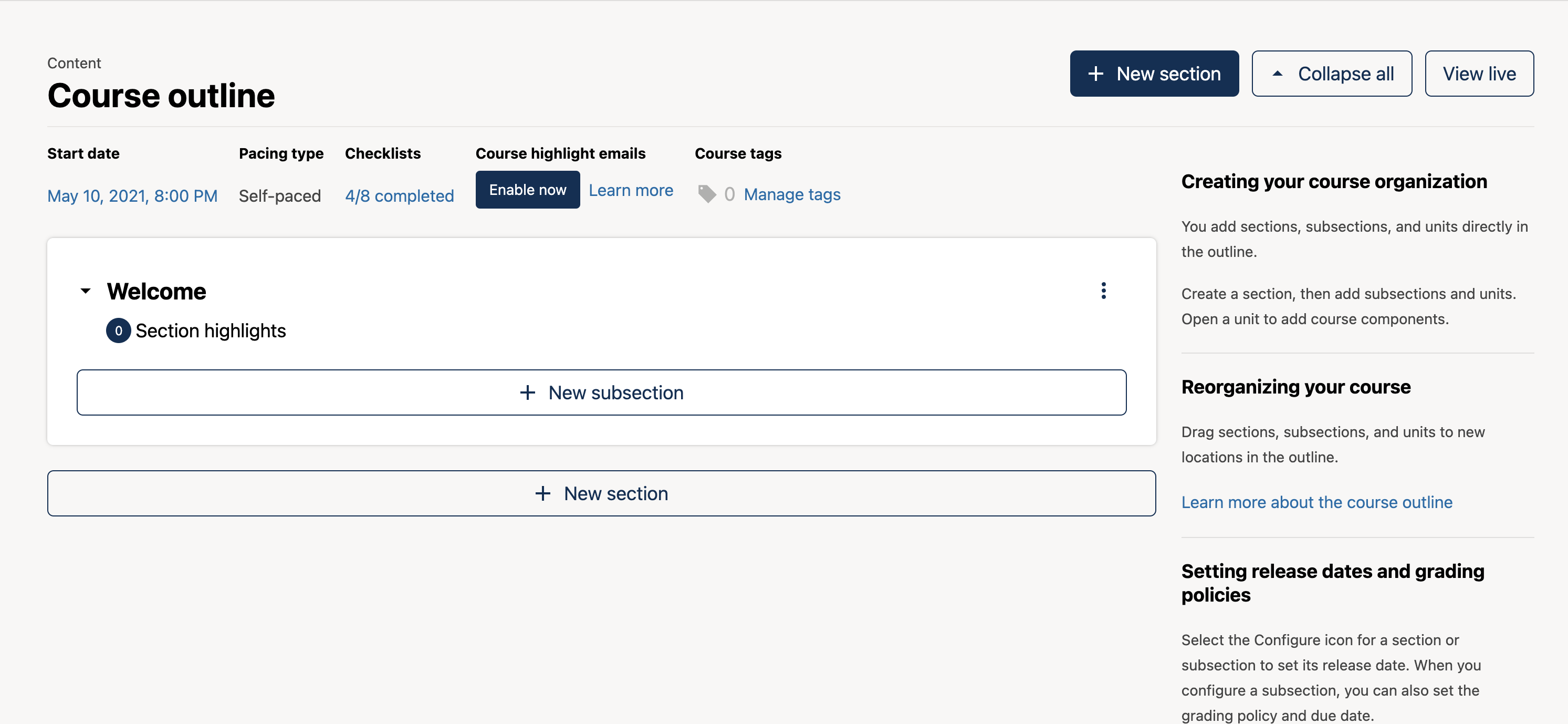

1. Open Content in your course and access the Studio editor.

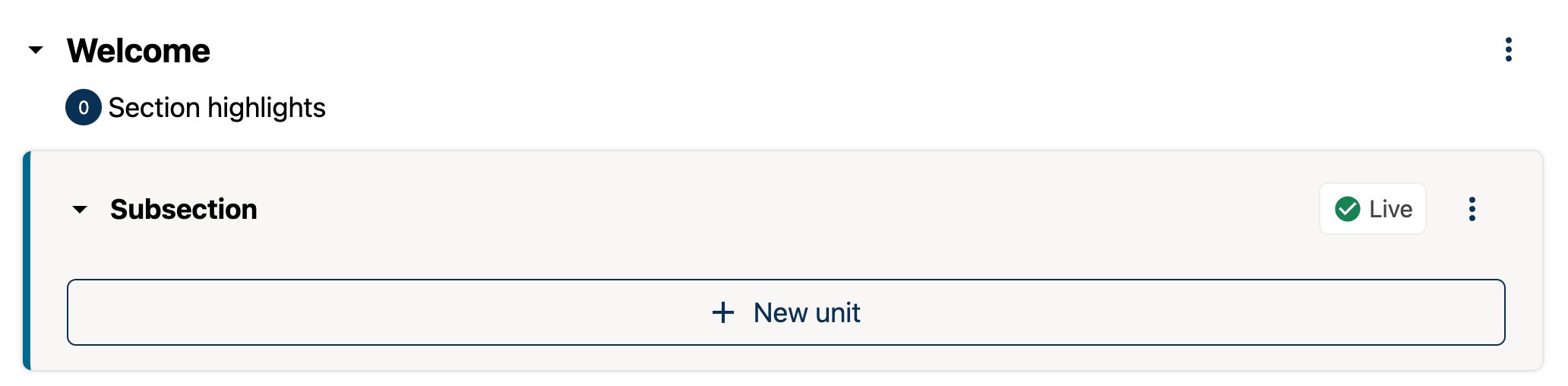

2. Create New Subsection ▸ New Unit.

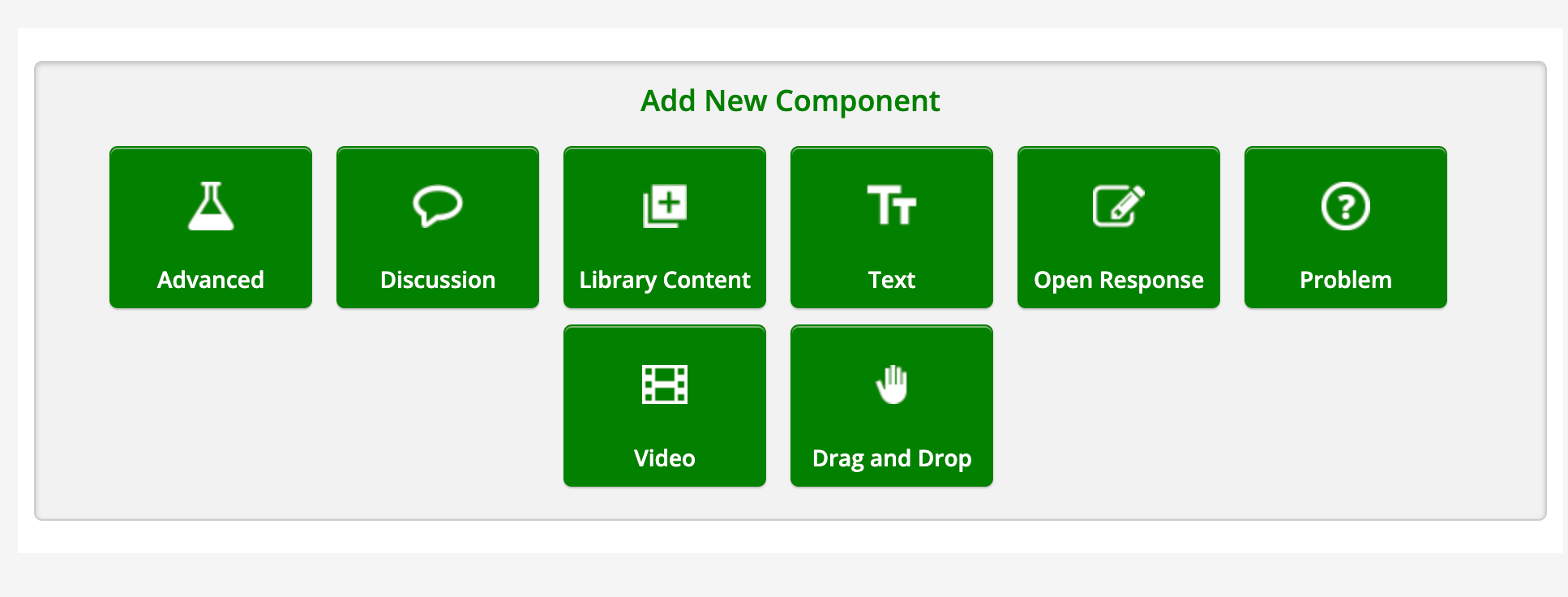

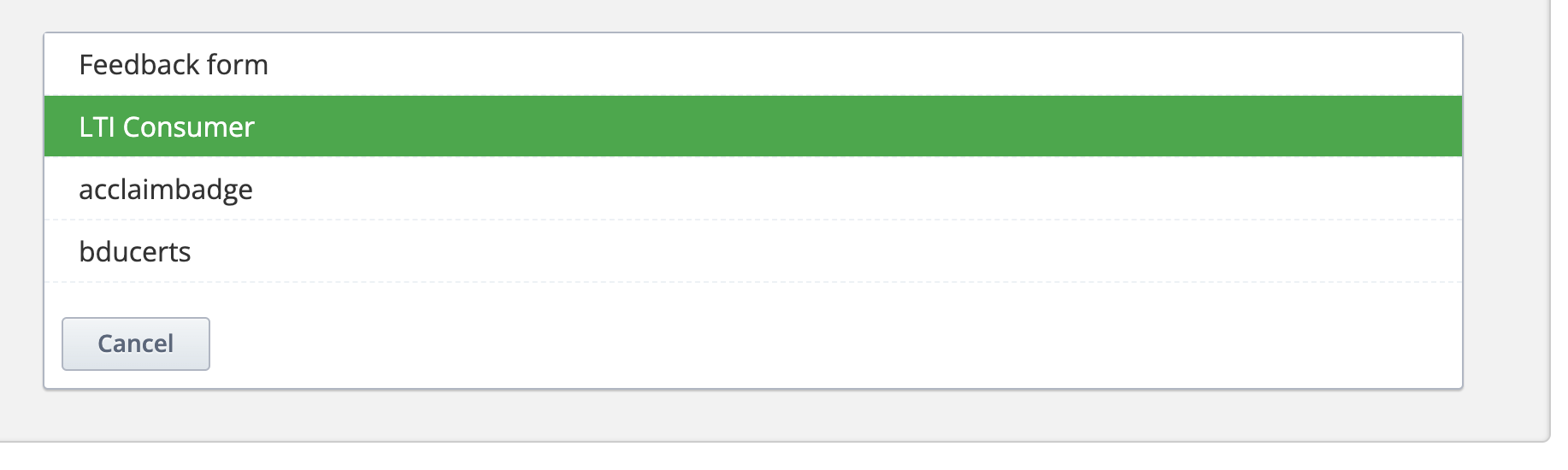

3. Click Advanced (flask icon) → LTI Consumer.



4. Press Edit and fill in the fields:

   Field	Value
   LTI ID	sn_lti
   LTI URL	[Launch URL from general instructions]
   Launch Target	New Window
   Request user's username	true
   Request user's email	true
   Send extra parameters	true
   Scored *	true

   Note: Ensure Scored is set to true for graded assignments, so that grades can be assigned to the learner upon completion.

5. Save ➜ Preview the unit. Use "View this course as…" to test both Author and Learner views.
